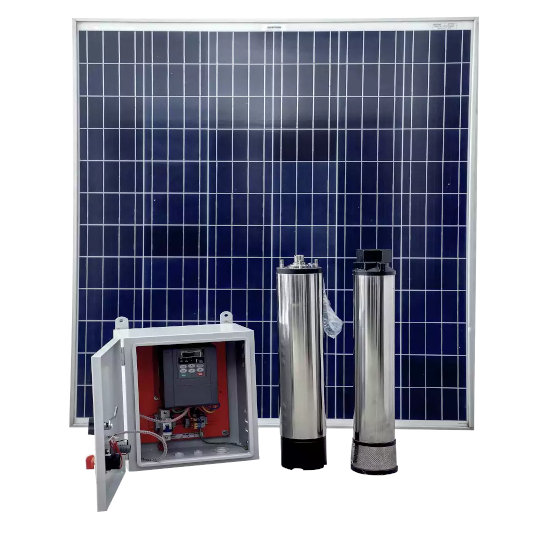

AC Solar Submersible Pumps

AC Solar Submersible Pumps

AC solar submersible pumps are electrically powered pumps that are designed to be submerged in a liquid, typically water, and are powered by alternating current (AC). Electricity is generated by solar panel which is further converted into AC with the help of an inverter.

One of the main advantages of AC solar submersible pumps is their lower cost as compared to DC pumps. Since they are powered by solar energy, they do not require grid power or fossil fuels, reducing energy costs and carbon emissions. Further, submersible pumps are submerged in the liquid being pumped and push fluid to the surface; there is no need for the pump to lift the water, which reduces the amount of work required by the pump. Thus they are highly efficient and provide high flow rates.

AC solar submersible pumps are also designed to be highly durable and long-lasting. The waterproof housing and sealed motor prevent water from entering the pump, reducing the risk of damage and increasing the lifespan of the pump. Additionally, AC solar submersible pumps are typically smaller and more compact than other types of pumps, making them ideal for use in confined spaces or in applications where space is limited.

Product Information
ModelV4 SeriesV6 Series
RPM28002800
ImpellerSS 410SS 410
Pump Bearing BushLeaded BronzeLeaded Bronze
Pump ShaftSS 410SS 304
Suction BracketSS 410SS 410
Pump HardwareSS 304SS 304
Motor ShaftLTB 5 GradeLTB 5 Grade
Motor Bearing BushSS 410SS 304
Thrust BearingTilting BearingTilting Bearing
Lower & Upper HousingSS 410SS 410
Stator ShellSS 304SS 304
Winding WireCopperCopper
Motor HardwareSS 304SS 304
